VACUUM PUMPS 2VP-R SERIES

Next Prev

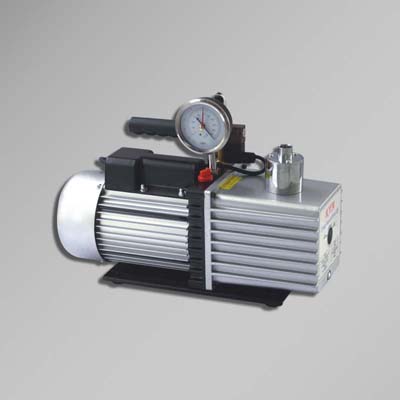

VACUUM PUMPS 2VP-1R

VACUUM PUMPS 2VP-1R

Model

2VP-1R

2VP-2R

2VP-4R

Voltage

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

Free Air Displacement

2CFM

2.5CFM

4CFM

5CFM

8CFM

9CFM

58 l/min

0.97 l/s

72 l/min

1.2 l/s

115l/min

2.36 l/s

142 l/min

3.3 l/s

198l/min

4 l/s

240l/min

Ultimate Vacuum

5×10-1 Pa

5×10-1 Pa

5×10-1 Pa

25 Microns

0.033 mbar

25 Microns

0.033 mbar

25 Microns

0.033 mbar

Motor

1/3 HP

1/3 HP

3/4 HP

Rotating Speed

1440 r/min 1720 r/min

1440 r/min1720 r/min

1440 r/min1720 r/min

Intake Fitting

1/4 SAE

1/4 SAE

1/4 SAE

Oil Capacity

250 ml

280 ml

600 ml

Dimension

315×125×240 mm

340×135×260 mm

390×145×280mm

Net Weight

10 kg

11kg

17kg



Power Supply Plugs



European Plug
European Plug
European Plug
European Plug
American Plug
Taiwan Plug
Australian Plug
England Plug
