HYDRAULIC TUBE EXPANDER CT-300

HYDRAULIC TUBE EXPANDER

  • Manual hydraulic mechanism designed can expand from 10mm to 42mm O.D. tubing easily with less effort.
  • Used for soft copper tube, aluminum tube, titanium tube, soft steel and other soft tube.
  • Expander segments are made of high-quality hardened steel.

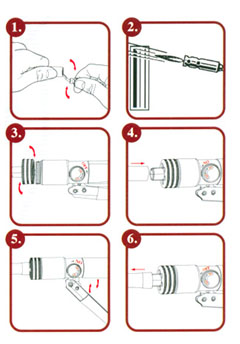

Six Easy steps:

  • Deburr inside of tube.
  • Anneal the tube if necessary （for hard or thick wall tube）.
  • Screw the expander head on expander.
  • Put the end of tube on expander head.
  • Tighten the relief valve knob to ‘ON’ position then pump handle until tube is expanded to the end.
  • Turn the relief valve knob to ‘OFF’ position to loosen expander head. Remove expanded tube.


CT-100A/CT-100M Swaging/Expanding Kit

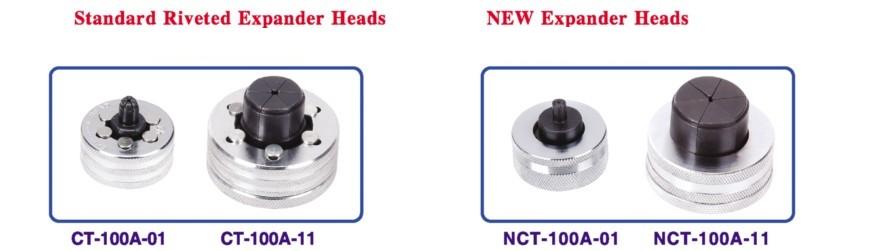

Normal Spare Expander Heads  New Spare Expander Heads

Item No.        Inch                         Item No.           Inch

100A-01       For inch:3/8”          N100A-01       For inch:3/8”

100A-02       For inch:1/2”          N100A-02       For inch:1/2”

100A-03       For inch:5/8”          N100A-03       For inch:5/8”

100A-04       For inch:3/4”          N100A-04       For inch:3/4”

100A-05       For inch:7/8”         N100A-05       For inch:7/8”

100A-06       For inch: 1”           N100A-06       For inch:  1”

100A-07       For inch:1-1/8”     N100A-07       For inch: 1-1/8”

100A-08       For inch:1-1/4”     N100A-08       For inch: 1-1/4”

100A-09       For inch:1-3/8”     N100A-09       For inch: 1-3/8”

100A-10       For inch:1-1/2”     N100A-10       For inch: 1-1/2”

100A-11       For inch:1-5/8”     N100A-11       For inch: 1-5/8”



Normal Spare Expander Heads  New Spare Expander Heads

Item No.            Metric                        Item No.           Metric

100M-01    For Metric:10mm       N100M-01    For Metric:10mm

100M-02    For Metric:12mm       N100M-02    For Metric:12mm

100M-03    For Metric:16mm       N100M-03    For Metric:16mm

100M-04    For Metric:19mm       N100M-04    For Metric:19mm

100M-05    For Metric:22mm       N100M-05    For Metric:22mm

100M-06    For Metric:25mm       N100M-06    For Metric: 25mm

100M-07    For Metric:28mm       N100M-07    For Metric: 28mm

100M-08    For Metric:32mm       N100M-08    For Metric: 32mm

100M-09    For Metric:35mm       N100M-09    For Metric: 35mm

100M-10    For Metric:38mm       N100M-10    For Metric: 38mm

100M-11    For Metric:42mm       N100M-11    For Metric: 42mm

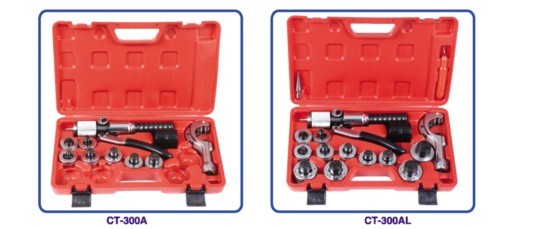

Item No.

DESCRIPTION

CT-300AL

NEW

CT-300A+CT-107+CT-209+CT-207

For inch:3/8″,1/2″,5/8″,3/4″,7/8″,1″,1-1/8″,1-1/4”,1-3/8″,1-1/2″,1-5/8″,O.D.Tubing.

CT-300ML

NEW

 CT-300A+CT-107+CT-209+CT-207

For metric: 10, 12, 16, 19, 22, 25,28mm,32, 35,38,42mm, O.D.Tubing.

CT-300A

Normal

CT-300A+CT-107+CT-209

For inch: 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1-1/8″ O.D.Tubing.

CT-300M

Normal

CT-300M+CT-107+CT-209

For metric: 10, 12, 16, 19, 22, 25, 28mm O.D.Tubing.
