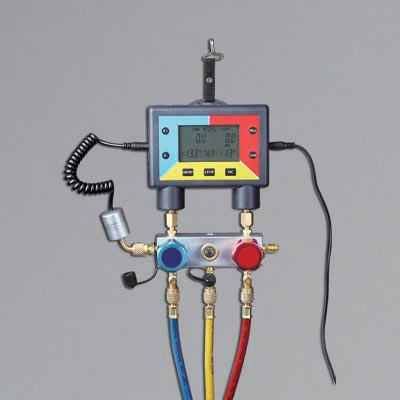

RTM MULTI-FUNCTION DIGITAL MANIFOLD GAUGE SET

RTM multi-function digital manifold gauge set features an easy to read digital display for 56 different refrigerant  types and a variety of temperature and pressure units.The gauges are pulsation proof and automatically calibrate to zero at start up at any elevation up to 16.000 feet.It can accurately measure the refrigerant temperature and pressure near the outlet of the evaporator and condenser as well as the corresponding pressure conversion and temperature index of the refrigerant saturation. The unit includes 3 high pressure.Color coded 72" hoses and has 2 valves.

Specifications
Applied Refrigerants: All CFC,HCFC,HFC refrigerants total more than 68 types.

Unit Measurements
Pressure:kg/cm,in.Hg,mmHg,bar,psi,kPa.
Vacuum:kg/cm,in.Hg,mmHg,bar,psi,kPa,Micron
Temperature:℃,℉

Display Range
High side:0 to 725 psi(0 to 5000 kPa)
Low side:0 to 435 psi(0 to 3000 kPa)
Vacuum:29.92 in.Hg to 0 in.Hg
Temperature:-40 to 203℉ (-40 to 95 ℃)

Maximum Overpressure
High Side:10875psi(7500 kPa)
Low Side:6255 psi(4500 kPa)
Vacuum:59.84in.Hg

Tolerance
Pressure High Side:±2.175 psi(±15 kPa)
Pressure Low Side:±1.45 psi(±10 kPa)
Vacuum:±0.08859 in.Hg(±0.3 kPa)
Temperature:±0.5℃
Power supply:9V Battery for 30 hrs LCD flashes to indicate low battery
Auto Shut - off Time:30 min. Under no operation( Extended 30 min by any button touch except On/Off Button)

Background Lamp
Auto Shut - off Time:10 min. Under no operation
Temperature:10.4 to 120.2℉(-12 t 49 ℃)

Include:

• RTM digital gauge
• Charging hoses(60" or 72")
• Vacuum sensor
• Temperature sensor
• Two valve manifold or four manifold is on your option
• Aluminum case

NOTE:Pressure or temperatures below or above the rated ranges will cause a "FULL" to be displayed.Need more information,please ask the manufacture for the owner's manual.
