Ball Valve Tool RTM-VC Series

Next Prev

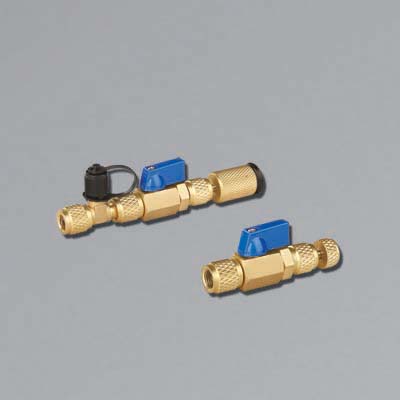

1/4" 4-IN-1 BALL VALVE TOOL for vacuum,charge,cores and recovery



Remvoe and replace Schrader cores without losing charge.
  1. Vacuum valve.Extra 1/4" side port on VC12 to attach electronic micron vacuum gauge right at system for greater accuracy.

  2. Core removal access.Lets you evacuate and charge through an unrestricted line for increased speed and higher vacuum.

  3. Core replacement.

  4. Recovery valve. Core removal allows recovery unit to work at maximum efficiency,speeding the recovery process.


 ITEM  DESCRIPTION

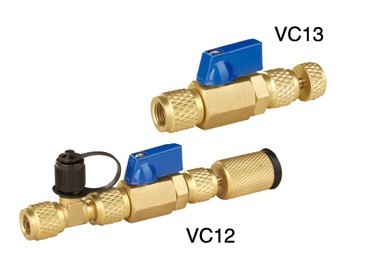

 VC12  Vacuum/charge ball valve w/side port
 VC13  Vacuum/charge valve w/o side port
 VC14  Accessory set - 2 piece

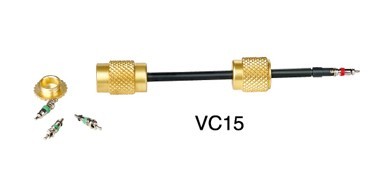

 VC15  Broken Schrader remover acc.
 VC17  Grappler rod/nut assembly
 VC18  Gasket for VC12(5 pk.)
 VC19  Seal Kit includes core,cap, 4 "O"-rings,gasket



5/16" 4-IN-1 BALL VALVE TOOL for R-410a systems with 5/16" access ports

Similar to the 4-in-1 core tool above but with 5/16" flare fittings and for use with R-410a.

 ITEM  DESCRIPTION
 VC20  5/16" Vacuum/charge valve-side port
 VC21  5/16" Vacuum/charge valve w/o side port
 VC22  5/16" Rethread accessary
 VC23  5/16" Schrader rethreader
